How do evaporator coils work?

Air conditioning systems have become an essential part of modern life, allowing us to escape the heat and enjoy comfortable indoor environments. At the heart of these systems lies a component that plays a pivotal role in the cooling process – the evaporator coil. While often overlooked, the evaporator coil is a critical element that facilitates the transfer of heat and ensures efficient cooling. In this comprehensive guide, we will take a deep dive into the world of evaporator coils, understanding their functions, significance, maintenance requirements, and their contribution to overall HVAC system efficiency.


What is an evaporator coil?

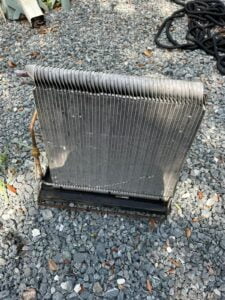

An evaporator coil is a critical component within air conditioning and refrigeration systems that plays a central role in the cooling process. It is located inside the indoor unit of the system and is responsible for absorbing heat from indoor air, which leads to the cooling of the air that is then circulated throughout indoor spaces.

Here’s a breakdown of what an evaporator coil is and how it works:

Definition and Function: An evaporator coil consists of a network of tubes or fins, typically made of materials like copper or aluminum, that are designed to facilitate the transfer of heat. When warm indoor air is drawn into the HVAC system, it passes over the cold surface of the evaporator coil. As the air makes contact with the coil, the heat from the air is transferred to the refrigerant inside the coil.

How do evaporator coils work?

How do evaporator coils work?

Evaporator coils play a fundamental role in the cooling process of an air conditioning system. These coils are located within the indoor unit of the system and are responsible for absorbing heat from indoor air, resulting in the cooling effect that we feel. Here’s how evaporator coils work:

  1. Refrigerant Circulation: The process begins with the circulation of a refrigerant, a specialized fluid with properties that allow it to easily change between liquid and gaseous states. The refrigerant enters the evaporator coil as a low-pressure, low-temperature liquid.
  2. Heat Absorption: As warm indoor air is drawn into the HVAC system, it passes over the evaporator coil’s cold surface. The refrigerant inside the coil absorbs heat from the air, causing the refrigerant to evaporate and transform into a low-temperature gas.
  3. Air Cooling: As the heat is transferred from the air to the refrigerant, the air temperature decreases. This cooled air is then distributed through the ductwork and vents into the living or working spaces, providing the desired cooling effect.
  4. Condensation: The evaporated refrigerant, now in the form of a low-temperature gas, is sent to the outdoor condenser unit through the refrigerant lines. In the condenser unit, the refrigerant is compressed, causing it to release the heat it absorbed in the evaporator coil.
  5. Release of Heat: As the refrigerant releases heat, it condenses back into a liquid state. This heat is expelled into the outdoor air by the condenser coil and a fan. The refrigerant, now in liquid form, is sent back to the evaporator coil to begin the cycle anew.
How do evaporator coils work?

5 Essential Facts About Evaporator Coils You Need to Know

When it comes to the functionality and efficiency of your air conditioning system, understanding the key components is crucial. One such component that plays a critical role in the cooling process is the evaporator coil. While it might not be the most visible part of your HVAC system, its importance cannot be overstated. In this blog, we’ll uncover five essential facts about evaporator coils that every homeowner should know.

1. The Heart of Cooling: Role and Function Evaporator coils are the unsung heroes behind the cooling magic of your air conditioner. Located within the indoor unit, these coils are responsible for absorbing heat from indoor air, effectively cooling it down before it’s circulated throughout your living spaces. As warm air passes over the cold surface of the evaporator coil, heat is transferred to the refrigerant within the coil, causing the refrigerant to evaporate and transform into a low-temperature gas. This cooled air is then distributed through your home’s ductwork, providing the refreshing comfort you enjoy on hot days.

2. Refrigeration Cycle: The Driving Force Understanding the refrigeration cycle is key to grasping how evaporator coils work. This cycle involves the circulation of a refrigerant that changes states between liquid and gas, facilitating the transfer of heat. The evaporator coil is where the refrigerant absorbs heat from the indoor air, causing it to evaporate and create a cooling effect. This cooled gas then travels to the outdoor condenser unit, where it releases heat and returns to its liquid state, ready to repeat the cycle.

3. Maintenance Matters: Cleaning and Care Proper maintenance of evaporator coils is essential for optimal performance. Over time, dust, dirt, and debris can accumulate on the coil’s surface, hindering heat exchange and reducing efficiency. Regular cleaning, along with changing air filters, ensures that the coil can effectively absorb heat and provide efficient cooling. Neglecting maintenance can lead to decreased cooling efficiency, increased energy consumption, and even costly repairs.

4. Common Issues and Red Flags Evaporator coils are not immune to problems. Common issues include frost or ice formation on the coil’s surface, dirt buildup, refrigerant leaks, and reduced cooling efficiency. If you notice uneven cooling, strange noises, or higher energy bills, these could be indicators that your evaporator coil needs attention. Prompt professional inspection and maintenance can address these issues before they escalate.

5. Professional Care and Longevity When it comes to the health of your evaporator coil, professional care is essential. Regular HVAC inspections by trained technicians can catch potential problems early, ensuring that your coil functions optimally and has a longer lifespan. Technicians can identify issues, clean the coil, check refrigerant levels, and recommend necessary repairs or replacements.

Types of Evaporator Coils

Evaporator coils come in various types, each tailored to specific cooling needs and system configurations. Standard evaporator coils are found in conventional split systems, where the evaporator coil is paired with a condenser unit located outdoors. On the other hand, multi-zone and mini-split systems utilize separate evaporator coils for each zone, enabling precise temperature control in different areas of a building. Additionally, high-efficiency evaporator coils incorporate advanced designs that optimize heat exchange, contributing to improved cooling performance and energy efficiency.

There are several types of evaporator coils used in air conditioning and refrigeration systems, each designed to suit specific applications and cooling needs. Here are some common types of evaporator coils:

  1. Standard Evaporator Coils: These are the most common types of evaporator coils found in traditional central air conditioning systems. They are used in split systems where the evaporator coil is installed inside the indoor unit (often the air handler or furnace), and the condenser coil is located in the outdoor unit. Standard coils are versatile and widely used for residential and light commercial applications.
  2. Multi-Zone Evaporator Coils: Multi-zone systems consist of multiple indoor units connected to a single outdoor unit. Each indoor unit has its evaporator coil, allowing different zones or rooms to be cooled independently. Multi-zone coils are designed to provide individualized temperature control, making them ideal for larger spaces or buildings with varying cooling needs.
  3. Mini-Split Evaporator Coils: Mini-split systems, also known as ductless systems, use individual evaporator coils for each indoor unit. These systems are efficient and flexible, as they don’t require ductwork and can be installed in specific areas that need cooling. Mini-split coils can be wall-mounted, ceiling-mounted, or concealed, depending on the design and layout of the space.
  4. High-Efficiency Evaporator Coils: High-efficiency coils are designed to optimize heat transfer and enhance cooling performance. These coils often feature advanced fin designs and materials that improve airflow and heat exchange efficiency, resulting in greater energy efficiency and comfort.
  5. Cased and Uncased Coils: Cased coils are housed within a protective casing that helps direct airflow and prevent air leaks. Uncased coils, on the other hand, are designed to be installed directly into an existing air handler or furnace. The choice between cased and uncased coils depends on the specific installation requirements.
  6. Vertical and Horizontal Evaporator Coils: These terms refer to the orientation of the coil within the indoor unit. Vertical coils are positioned upright, while horizontal coils are laid flat. The choice between vertical and horizontal coils depends on available space and the design of the air handler or furnace.
  7. Low-Profile Evaporator Coils: Low-profile coils are designed to fit in spaces with limited vertical clearance. They are often used in attics or other areas where space is constrained.
  8. Commercial Evaporator Coils: For larger commercial applications, such as office buildings, retail spaces, and industrial facilities, specialized commercial evaporator coils are used. These coils are designed to handle higher cooling loads and provide consistent temperature control in large spaces.

How do evaporator coils work?


How long do AC evaporator coils last?

The lifespan of AC evaporator coils can vary based on factors such as usage, maintenance, environmental conditions, and the quality of the coil itself. On average, AC evaporator coils can last anywhere from 10 to 15 years or more. However, some coils might need replacement sooner, while others might last longer with proper care.

Factors that can influence the lifespan of AC evaporator coils include:

  1. Quality of Installation: Proper installation by a skilled HVAC professional is essential for the longevity of the evaporator coil. Incorrect installation can lead to premature wear and tear.
  2. Usage: The more frequently your AC system runs, the more wear and tear the evaporator coil will experience. Systems that are used year-round or in areas with hot climates might see more wear.
  3. Maintenance: Regular maintenance, such as cleaning the coil, changing air filters, and ensuring proper airflow, can significantly extend the life of the evaporator coil. Neglecting maintenance can lead to dirt buildup, reduced efficiency, and a shorter lifespan.
  4. Air Quality: Airborne pollutants, dust, and contaminants can accumulate on the evaporator coil, impacting its performance and lifespan. Proper air filtration and indoor air quality management can help mitigate this issue.
  5. Environmental Factors: The environment in which your AC system operates can affect the coil’s lifespan. Coastal areas with salt exposure or locations with high humidity levels can lead to faster corrosion.
  6. Coil Material and Quality: The quality of the coil itself plays a role. Higher-quality coils, often found in premium HVAC systems, might have a longer lifespan due to better materials and construction.
  7. Refrigerant Leaks: Refrigerant leaks can lead to coil damage and impact the overall performance of the AC system. Regular inspections can help catch and address leaks early.
  8. Warranty: Some HVAC systems come with warranties that cover parts, including the evaporator coil. If your coil fails within the warranty period, you might have coverage for replacement costs.

10 Signs Your Evaporator Coil Needs Immediate Attention

Evaporator coils are essential components in air conditioning systems, but like any part of an HVAC system, they can experience issues over time. Some common evaporator coil issues include:

  1. Frost or Ice Formation: If the evaporator coil becomes too cold due to restricted airflow or low refrigerant levels, moisture in the air can freeze on the coil’s surface. This can lead to reduced heat exchange efficiency and impaired cooling performance.
  2. Dirt and Debris Accumulation: Dust, dirt, and other airborne particles can accumulate on the evaporator coil’s surface over time. This buildup acts as insulation, reducing the coil’s ability to absorb heat and potentially leading to decreased cooling efficiency.
  3. Corrosion and Coil Leaks: Evaporator coils are made of metal, and exposure to moisture and humidity can cause them to corrode over time. Corrosion can weaken the coil’s structure and lead to refrigerant leaks, impacting the system’s overall performance.
  4. Refrigerant Leaks: Leaks in the coil can result from corrosion, manufacturing defects, or other factors. Refrigerant leaks not only reduce cooling efficiency but can also harm the environment and lead to inadequate cooling.
  5. Clogged Drain Lines: As moisture from the air condenses on the evaporator coil, it drips into a drain pan and flows out through a drain line. Over time, dirt and debris can clog these drain lines, leading to water overflow and potential water damage.
  6. Reduced Cooling Efficiency: Any of the above issues can contribute to reduced cooling efficiency, resulting in longer cooling cycles, higher energy consumption, and decreased comfort.
  7. Mold and Bacteria Growth: The moist environment of the evaporator coil can promote the growth of mold and bacteria. These contaminants can negatively affect indoor air quality and lead to health issues for occupants.
  8. Uneven Cooling: If the evaporator coil is not functioning properly, it can lead to uneven cooling throughout the space, with certain areas remaining warmer than others.
  9. Inadequate Airflow: Reduced airflow due to clogged air filters, closed vents, or other obstructions can impact the coil’s heat exchange efficiency and overall system performance.
  10. Age and Wear: Evaporator coils, like all components, have a limited lifespan. Over time, wear and tear can lead to decreased efficiency and performance.

Regular maintenance, including cleaning the coil, changing air filters, and scheduling professional HVAC inspections, can help prevent many of these issues. If you suspect that your evaporator coil is experiencing problems, it’s best to contact a licensed HVAC technician for a thorough assessment and appropriate solutions. Addressing issues promptly can help prolong the life of your system and maintain optimal cooling performance.

How do evaporator coils work?

How do I know if my evaporator coil needs to be replaced?

There are several signs that might indicate your evaporator coil needs to be replaced. If you notice any of the following issues, it’s advisable to contact a professional HVAC technician for a thorough inspection and diagnosis:

  1. Reduced Cooling Performance: If you’ve noticed that your air conditioner isn’t cooling your space as effectively as it used to, or if there are temperature inconsistencies throughout your home, it could be due to a malfunctioning evaporator coil.
  2. Ice Formation: If you see ice forming on the evaporator coil, it could indicate that the coil is not functioning properly. Ice formation might be a result of reduced airflow, refrigerant issues, or other underlying problems.
  3. Frequent Breakdowns: If your air conditioning system is experiencing frequent breakdowns and requires constant repairs, the evaporator coil might be compromised. Repeated issues can suggest that the coil is nearing the end of its lifespan.
  4. Inadequate Airflow: If you’ve noticed that the airflow from your vents is weak or uneven, it could be due to a clogged or damaged evaporator coil.
  5. Unusual Noises: Strange noises coming from your HVAC system, such as hissing or bubbling sounds, could indicate refrigerant leaks. Leaks can damage the coil and impact its performance.
  6. Refrigerant Leaks: If you’ve observed refrigerant leaks, which might appear as oily spots or stains around the coil, it’s a clear indication that the coil needs attention.
  7. Higher Energy Bills: A malfunctioning evaporator coil can lead to reduced efficiency and increased energy consumption. If you’ve noticed a sudden spike in your energy bills without a corresponding increase in cooling comfort, the coil could be the culprit.
  8. Age of the System: If your air conditioning system is over 10-15 years old and you’re experiencing issues related to cooling performance, it might be time to consider the possibility of replacing the evaporator coil.
  9. Professional Assessment: Ultimately, the best way to determine if your evaporator coil needs replacement is to have a professional HVAC technician inspect the system. They can identify any issues, assess the coil’s condition, and provide recommendations based on their findings.


The AC Therapist’s Commitment to Your Cooling System’s Heart-Evaporator Coils

In the world of air conditioning, the unsung heroes that keep us cool are the evaporator coils. These unassuming components are the key players in the intricate dance of heat exchange that transforms warm indoor air into the refreshing breeze that fills our homes. As we’ve delved into the mechanics of how evaporator coils work and uncovered five essential facts about their role and care, it’s clear that they are the heart of efficient cooling.

At The AC Therapist, we understand the critical importance of these evaporator coils in keeping your indoor spaces comfortable, especially here in the Tampa Bay area. From absorbing heat to facilitating the refrigeration cycle, these coils are the driving force behind your air conditioning system. As a local residential and light commercial HVAC contractor, we are dedicated to ensuring that your evaporator coils, as well as your entire cooling system, are operating at their best.

Regular maintenance, professional care, and prompt attention to any issues are part of our commitment to your comfort. From AC repair and installation to maintenance plans that keep your system in top shape, The AC Therapist is your partner in maintaining a cool and comfortable living environment.

As you enjoy the cool breeze of a well-functioning air conditioning system, remember the role that evaporator coils play in making it all possible. If you have any questions, or concerns, or need assistance with your HVAC system, don’t hesitate to reach out to The AC Therapist. Your comfort is our priority, and we’re here to ensure that your cooling system keeps you comfortable year-round.
